MS-FUEL SAVER
A Strategic Solution for IMO Compliance and OPEX Reduction:
The GLOBALECHO MS-Fuel Saver Emulsified Fuel System
MS-Fuel Saver: The Ultimate Eco-Friendly & High-Efficiency Fuel Saving Solution
The Global Echo MS-Fuel Saver is a cutting-edge system that creates high-quality emulsified fuel oil by mixing water (and an emulsifier)
with standard bunker fuels (HFO, MDO, etc.). It is the most economical and reliable choice for green shipping operations.
with standard bunker fuels (HFO, MDO, etc.). It is the most economical and reliable choice for green shipping operations.
Core Benefits:
– Reduces Fuel Consumption: Achieves significant savings on fuel costs.
– Increases Engine Efficiency: Optimizes the combustion process for better performance.
– Dramatically Cuts Emissions: Radically reduces harmful exhaust gases, ensuring environmental compliance.
– Increases Engine Efficiency: Optimizes the combustion process for better performance.
– Dramatically Cuts Emissions: Radically reduces harmful exhaust gases, ensuring environmental compliance.

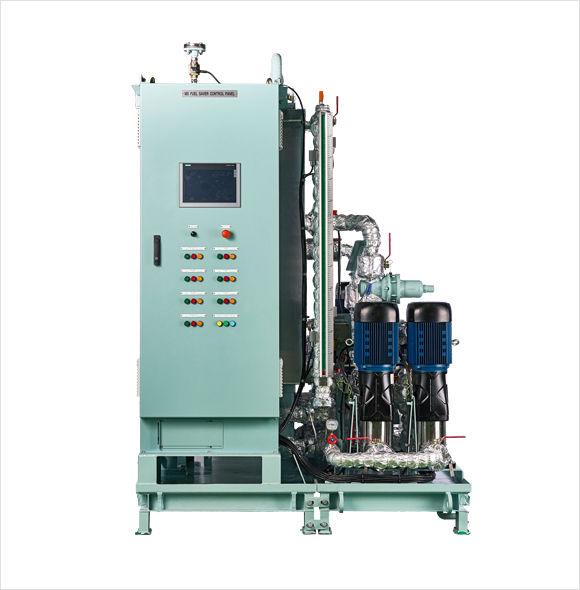

MS-Fuel Saver Unit
Provides a stable and consistent feed of
emulsified fuel to the main engine.

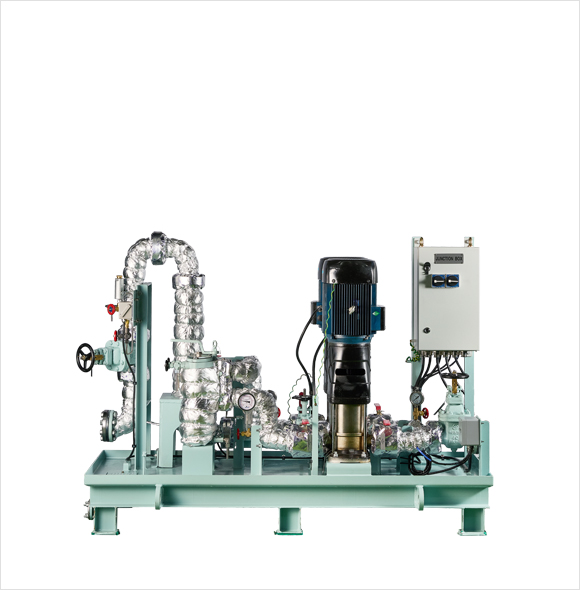

Mixing Unit
Optimized Blending Ratio of Fuel,
Water, and Additives
What Makes MS-Fuel Saver Special

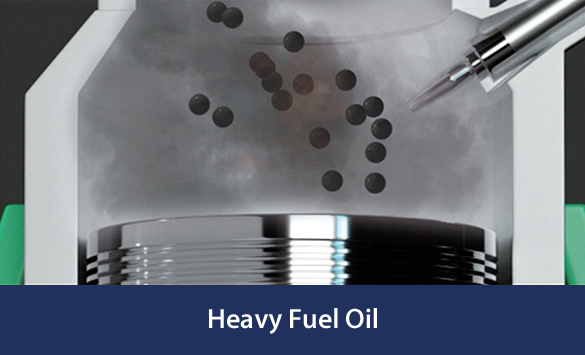

The Principle of Emulsified Fuel
Our technology harnesses the “Micro-Explosion” effect to achieve complete combustion.
`

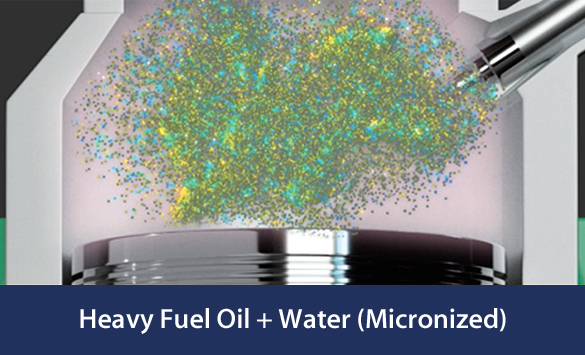

1. The "Micro-Explosion" Effect:
* As the emulsified fuel enters the hot combustion chamber, the internal water droplets instantly vaporize (boil).
* This rapid expansion shatters the larger fuel particle from within, creating a fine mist of hundreds of micronized particles.
* This rapid expansion shatters the larger fuel particle from within, creating a fine mist of hundreds of micronized particles.
2. Maximized Surface Area & Complete Combustion
* As the emulsified fuel enters the hot combustion chamber, the internal water droplets instantly vaporize (boil).
* This rapid expansion shatters the larger fuel particle from within, creating a fine mist of hundreds of micronized particles.
* This rapid expansion shatters the larger fuel particle from within, creating a fine mist of hundreds of micronized particles.

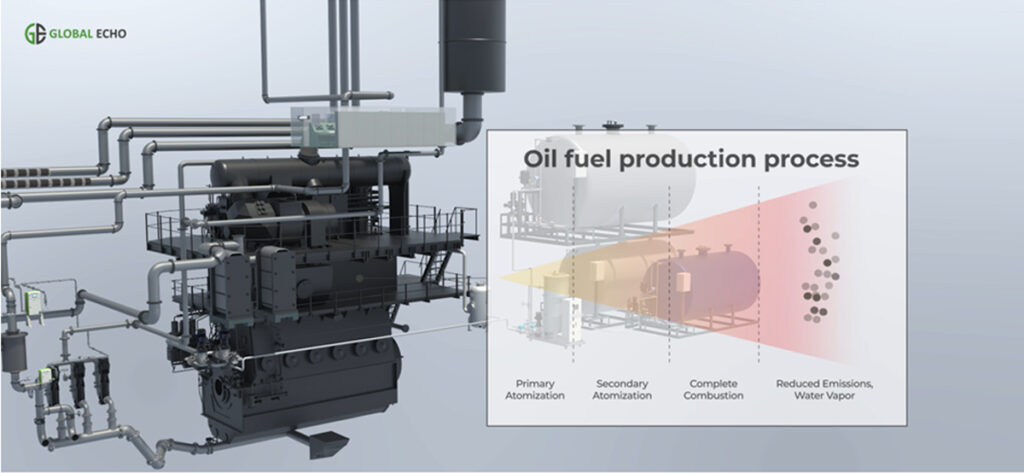

Increased Efficiency Through Complete Combustion
1. Long-Term Stability & Commercial Viability The emulsified fuel (fuel oil, water, additives) produced by the Fuel Saver is exceptionally stable,
resisting water-oil separation for over 180 days. This long-term stability ensures that combustion efficiency is never compromised,
delivering high economic feasibility and making the system fully commercially viable.
2. Enhanced Combustion & Minimized Consumption The system induces complete combustion,
which minimizes fuel consumption and reduces emissions. This is achieved through several key mechanisms:
Massive Surface Area Increase: The “micro-explosion” of water particles shatters the fuel, causing a secondary atomization.
This dramatically increases the fuel’s surface area for oxygen contact (e.g., 100-fold increase for 10µm droplets, 10,000-fold increase for 1µm droplets).
Improved Combustion Dynamics: The process lowers the fuel’s vaporization point. Furthermore, the turbulence created by
the vaporizing water (water gas/steam) promotes a more thorough mixing of fuel and air.
Cleaner Burn: This optimized combustion results in a shorter flame length and significantly reduced soot (particulate) generation.
resisting water-oil separation for over 180 days. This long-term stability ensures that combustion efficiency is never compromised,
delivering high economic feasibility and making the system fully commercially viable.
2. Enhanced Combustion & Minimized Consumption The system induces complete combustion,
which minimizes fuel consumption and reduces emissions. This is achieved through several key mechanisms:
Massive Surface Area Increase: The “micro-explosion” of water particles shatters the fuel, causing a secondary atomization.
This dramatically increases the fuel’s surface area for oxygen contact (e.g., 100-fold increase for 10µm droplets, 10,000-fold increase for 1µm droplets).
Improved Combustion Dynamics: The process lowers the fuel’s vaporization point. Furthermore, the turbulence created by
the vaporizing water (water gas/steam) promotes a more thorough mixing of fuel and air.
Cleaner Burn: This optimized combustion results in a shorter flame length and significantly reduced soot (particulate) generation.

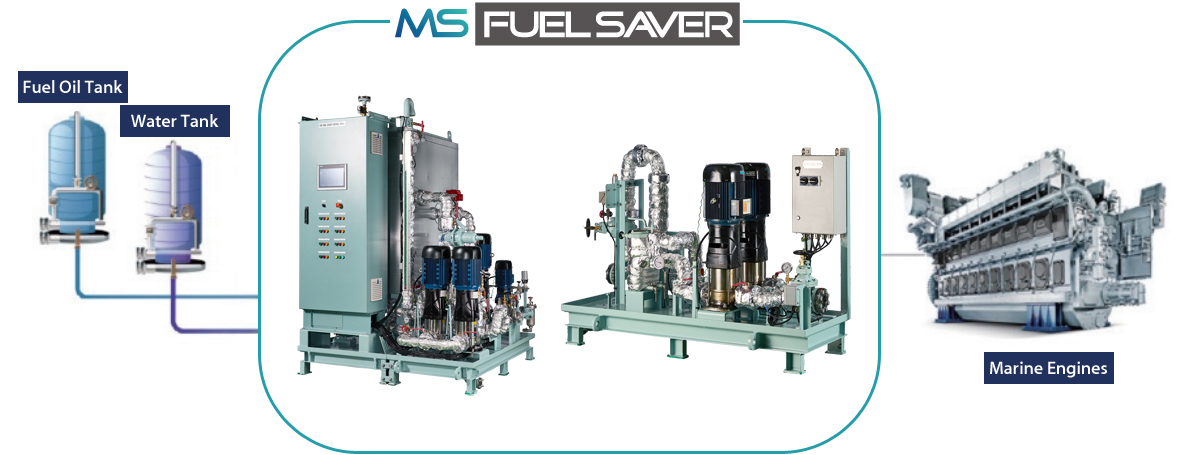

Overview Diagram

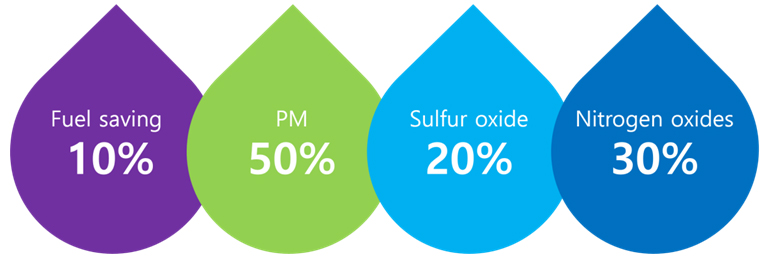

| 항목 (Target Item) | 저감 효과 (Reduction Effect) | Business Value & "So What?" | 관련 규제 (Regulation) |
|---|---|---|---|
| HFO (연료유) | An approximately 20% reduction | Substantial & Direct Reduction in OPEX (Operating Expenses) |
- |
| PM (미세먼지) | An approximately 50% reduction | educed Air Pollution (or Reduced Emissions) Maintains Engine Cleanliness Reduced Maintenance Costs (or Lower Maintenance Costs) |
- |
| NOx (질소산화물) | An approximately 30% reduction | Enables IMO Tier III Compliance | IMO MARPOL Annex VI |
| SOx (황산화물) | An approximately 20% reduction | SECA Compliant | IMO 2020 (Global Sulphur Cap) |
